    This retro-fit Tyre Pressure Monitoring System (TPMS) is an efficient and cost effective solution to monitor the condition of your tyres dynamically. TPMS will help prevent driving on deflated tyres and reduce fuel consumption. The WTPMS (Wireless Tyre Pressure Monitoring System) is a relatively new technology which has captured the focus of the industry because of its unique valve stem cap sensor design.
    The extremely lightweight, compact sensor which replaces your normal valve caps has been specifically designed to simplify and reduce the installation time. Through wireless technology, tyre pressure and temperature information is conveyed and displayed on the User-Friendly Graphic Interface (LCD Monitor).
Each set comprises of: 1x wireless monitor, 1x monitor charger, 4x sensors, 4x sensor anti-theft device, 1x bracket, 1x operating manual
Additional sensors can and should be ordered for full tyre coverage on heavy trucks and busses.

Features:

  • The TPMS system does monitor vehicle's tyre pressures and temperatures in real time.
  • The wireless receiver and LCD monitor is integrated in one compact and portable Receiver-handset unit.
  • Automatic Sound and Flash Alarms within six seconds after abnormality occurs, such as too high or too low tyre pressure or leakage.
  • Automatic Sound and Flash Alarms within six seconds after tyre’s temperature becomes too high (exceeds the preset level).
  • The handset tyre pressure monitoring criterion can be customized to accommodate different set pressure levels.
  • The portable Receiver-handset is powered by inner lithium battery or DC power supply (12/24V) through the cigarette-lighter-socket.
  • Low battery Alarm signals when recharging or external power is needed.
  • The Receiver Monitor can be portable or be fixed on bracket.
  • Four options for pressure measurement units: Kpa, PSI, Bar and Kgf/cm2
  • Temperature Measure Precision: ± 3deg
  • Pressure Measure Precision: ± 0.3bar
  • Monitor size: 86mm × 55mm × 23mm
  • Monitor Signal Receiving Frequency 433.92MHz
  • The Wireless Sensors are waterproof and dustproof and can be used under severe conditions without failure.
  • The Sensors are designed as a separate fittings and are screwed on to the tyre valves replacing the standard valve caps. There's no need to disassemble the tyres when mounting or removing the sensors.
  • Guard against theft and alarm system is available for the sensors.
  • The sensor's battery can be easily replaced. The normal life-span of the sensor battery is 1 year. When the capacity remained is insufficient for proper operation, automatic sound and flash alarms remind the user to replace the battery. (Battery Model No.: CR1632) (*except truck models)
  • Sensors' operating temperature: -10deg~85deg
  • Signal Transmitting Frequency 433.92MHz


Model 8300: Suitable for passenger cars.
Model 8400: Suitable for MRV's,  SUV's, Off-road and Light Trucks / Busses / Caravans.

  • Can monitor up to 4 tyres simultaneously.
  • Replaceable 1 year lifespan sensor battery.
  • Single Sensor Weight: 9gr
  • Sensor Dimensions: 24 x 21 x 21mm  (models 8300 / 8400)
  • Pressure measurement range: 0-10bar (models 8300 / 8400)


Model 8500: Suitable for Heavy Trucks and Busses.

  • Can monitor up to 22 tyres simultaneously. (i.e. up to 22 sensors)
  • Non-replaceable 5 year lifespan sensor batteries.
  • Single Sensor Weight: 24gr
  • Sensor Dimensions: 28.5 x 27.5 x 27.5mm  (model 8500)
  • Pressure measurement range: 0-16bar (model 8500)

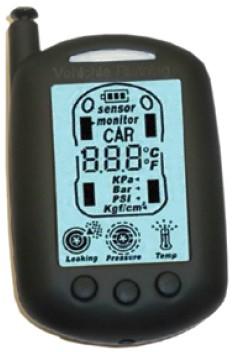

Wireless Tyre Pressure Monitoring System for cars, trucks, busses - Monitor unit



Wireless Tyre Pressure Monitoring System for cars, trucks, busses - sensors
