READ DTC (Diagnostic
Selecting this function allows the Scan Tool to read the Diagnostic Trouble
Codes (DTC's) from the vehicle control modules. DTC's are used to help
quickly determine the cause of a problem or problems within a vehicle. These
codes cause the control module (ECU) to illuminate the Malfunction Indicator
Lamp (MIL) when a fault occurs with one of the monitored systems. MIL is also
known as 'Service Engine Soon' or 'Check Engine' or 'Visit Workshop' lamp.
The ERASE DTC function clears the DTC's and reset all the
I/M Readiness Monitor Status to a NOT-RUN flashing condition. To set all of
the Monitors to a DONE status, an OBDII Drive Cycle must be performed.
Please refer to the vehicle service manual for information on how to perform
an OBDII Drive Cycle for the vehicle under test. This usually involves
driving the vehicle under certain conditions in order for the ECU's to
'relearn' the driving cycle. Erasing the DTC's from the ECU's memory also
helps with "before and after" diagnostics.
The Live Data function allows Real Time Viewing of the vehicles computer
module PID data. As the computer monitors the vehicle, information is
simultaneously transmitted to the scan tool in real time. In this mode, one
can see all engine parameters as engine temperature, advance, engine speed,
throttle position etc. etc. This helps greatly with finding intermittent or latent problems.
Wave form display of live data is also possible.
When an emission-related fault has occurred, certain vehicle data is
recorded by the on-board computer. This information is referred to as Freeze
Frame data. FREEZE FRAME is a snapshot of the operating conditions of the
engine and the relevant sensor values at the time when the fault had occurred.
This way you can see what the operating state of the system (say engine) was
when the fault occurred. i.e. engine temp, timing, vehicle speed, RPM,
throttle position, etc. etc.
When the vehicle on board computers detects a problem in their related
systems or components, their self-diagnostic program will assign a fault code (DTC)
and store it in its memory. They also record a Freeze Frame of the
conditions present when the fault was found and set the Malfunction
Indicator Lamp (MIL) alight. Some faults require detection for two trips in
a row before the MIL is turned on. This mode is used to check the status of
the MIL light, whether it had been set on or off in case the MIL on the
dashboard had malfunctioned or tampered with.
The I/M Readiness (Inspection / Maintenance Readiness) function is used to
view a snapshot of the operations on the emission system monitors in OBD II
equipped vehicles. The vehicle ECU constantly monitors it's dependant
systems and if one of them can not complete a full check it might set a DTC.
i.e. the engine temperature should complete a full circle from cold to hot
in order for the relevant I/M to be considered as 'complete'.
LIVE ACTUATIONS (where available
or permitted by the ECUs)
Some ECU's permit you to actuate (switch
On/Off etc. etc.) some of their operating circuits in order to diagnose
functionality of the relevant actuators. i.e relays, fans, door locks,
lights, injectors, A/C clutch etc. etc.
INFORMATION (where available or permitted by the ECUs)
This function allows the Scan Tool to request the vehicle information (VIN),
calibration ID(s) which identifies software version in vehicle control
module(s), and calibration verification numbers (CVN(s), Ignition Key's, etc. etc.
ECU VALUES ADAPTATION /
RESET, KEY and Parts CODING (where available or permitted
by the ECUs and/or vehicle manufacturer)
Increasingly, some vehicle spare parts come with
'coded' numbers that have to entered in to the ECU in order to recognize
and/or accept the new (or second hand) part. ECU's, Injectors, spare keys,
radios and even starters are now coming out 'coded'. This function is
indispensable if you need to change those vehicle parts.
- Supports all diagnostic protocols including the latest CAN+, VAN
- Support most car makes today including new Chinese and
Malaysian made vehicles

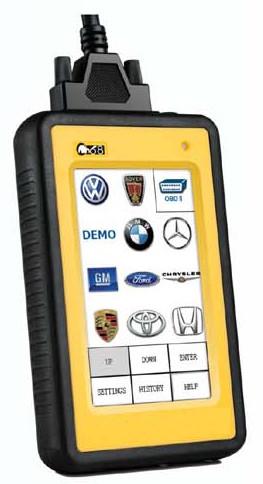

- Large Color Touch Screen Display with stylist for
- This set comes with one OBDII 16pin
connector. Adaptors for older vehicles (pre year 2000) are available on request only.
The C68 can store screen results which can be printed later via any
PC connected Printer.
- Live HELP for Diagnostic Trouble Codes. Almost all DTC's have Help screen access with
DTC explanation, troubleshooting and possible remedies.
connection via USB for updating the unit. Updates are available via
Internet or you can contact us for the latest one.
- NON-Lockable, NON-Expiring software with FREE UPDATES
coming almost every month.
Code Reader Vehicle
Coverage* - 50 manufacturers and growing
*Note: With new updates available every
month, please check with us for the latest vehicle coverage.
- American: Ford, GM, Chrysler, Isuzu
- Chinese: Chery, GEELY, Gonow, HaFei,
Jiangling, ChangCheng, Changan, Xiamen, ZhongShun
- European: Audi, BMW, Citroen, Euro Ford,
Fiat, Jaguar, Lancia, Land Rover, Mercedes Benz, Opel, Peugeot, Porche,
Renault, Alfa Romeo, Rover,Saab, Seat, Skoda, VW Transporter, VW, Volvo
- Indian: Mahindra, Maruri, TATA, Indo
Daihatsu, Indo Suzuki
- Japanese: Daihatsu, Honda, Isuzu, Mazda,
Mitsubishi, Nissan, Subaru, Suzuki, Toyota
- Korean: Daewoo, Hyundai, Kia, SsangYoung,
Download a brochure here:
C68 brochure (PDF file)
For more information about EOBD, OBDII and
CAN look in our
Tech Things To Know section.
